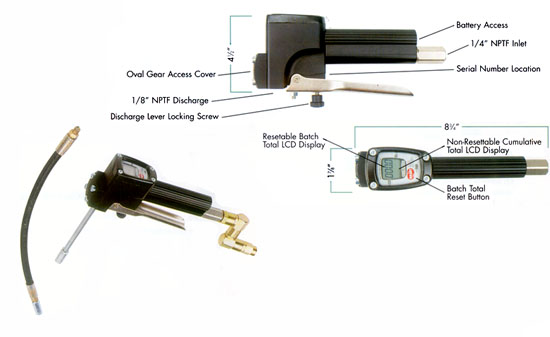

Body: Machined aluminum body, handle and gear cover. Steel control lever handle contains receptacle for two user replaceable 1.5V standard AA batteries.

Inlet: 1/4” NPTF

Outlet: 1/8” NPTF

Meter: Oval gear sensing elements, easily accessed via front cover held in place by 4 ea. 3 mm allen screws.

Electronics: Microprocessor controlled with LCD display. Batch total (resettable), cumulative total (non-resettable).

Control Lever Lock: Allows discharge lever to be safely secured to prevent accidental opening of the discharge valve.

Performance Specifications:

• Operating Pressure (max.) 7,250 PSI
• Burst Pressure (min.) 14,500 PSI
• Metering Accuracy +/- 3%
• Display
  Batch Total (oz.), 4 digits, 0.31” digit height
  Cumulative Total (lb.), 4 digits, 0.16” digit height
• Battery Type/Life 2 ea. AA / 10,000 hrs.
• Weight 2.16 lb. (batteries included)
• Operating Temperature Range 30° F to 140° F
